Description
The GO Anywhere Plus External Power Harness provides a reliable wired connection between a GO Anywhere Plus device and compatible industrial, towed, and construction equipment. Designed for equipment that uses a negative battery disconnect switch, the harness connects the tracker to the equipment’s battery, ignition signal, and chassis.
SKU: HRN-GA2EXTPWR
Highlights
- Designed for industrial, towed, and construction equipment
- Compatible with equipment using a negative battery disconnect switch
- 6-pin Chogori connector with flying leads
- Connects to battery leads, an appropriate ignition signal, and equipment chassis
- 63-inch /160 cm harness length
- Supports connected cables up to 5.6 feet / 1.7 m
Purpose-Built for Specialty Equipment
The HRN-GA2EXTPWR is designed for the minority of industrial, towed, and construction equipment that use a negative battery disconnect switch. It provides the wiring needed to connect the GO Anywhere Plus to the equipment’s electrical system while maintaining the appropriate power, ignition, and chassis connections.

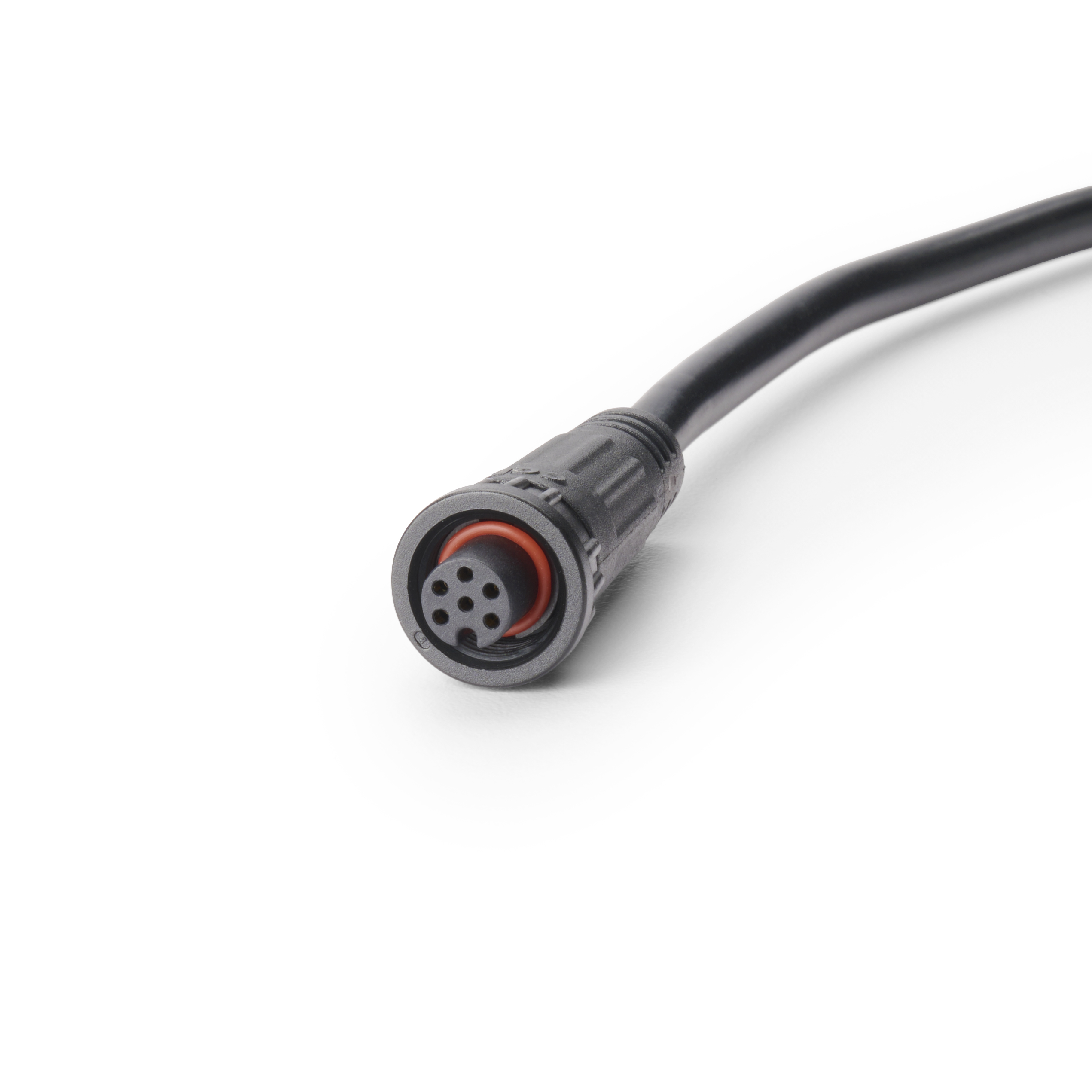

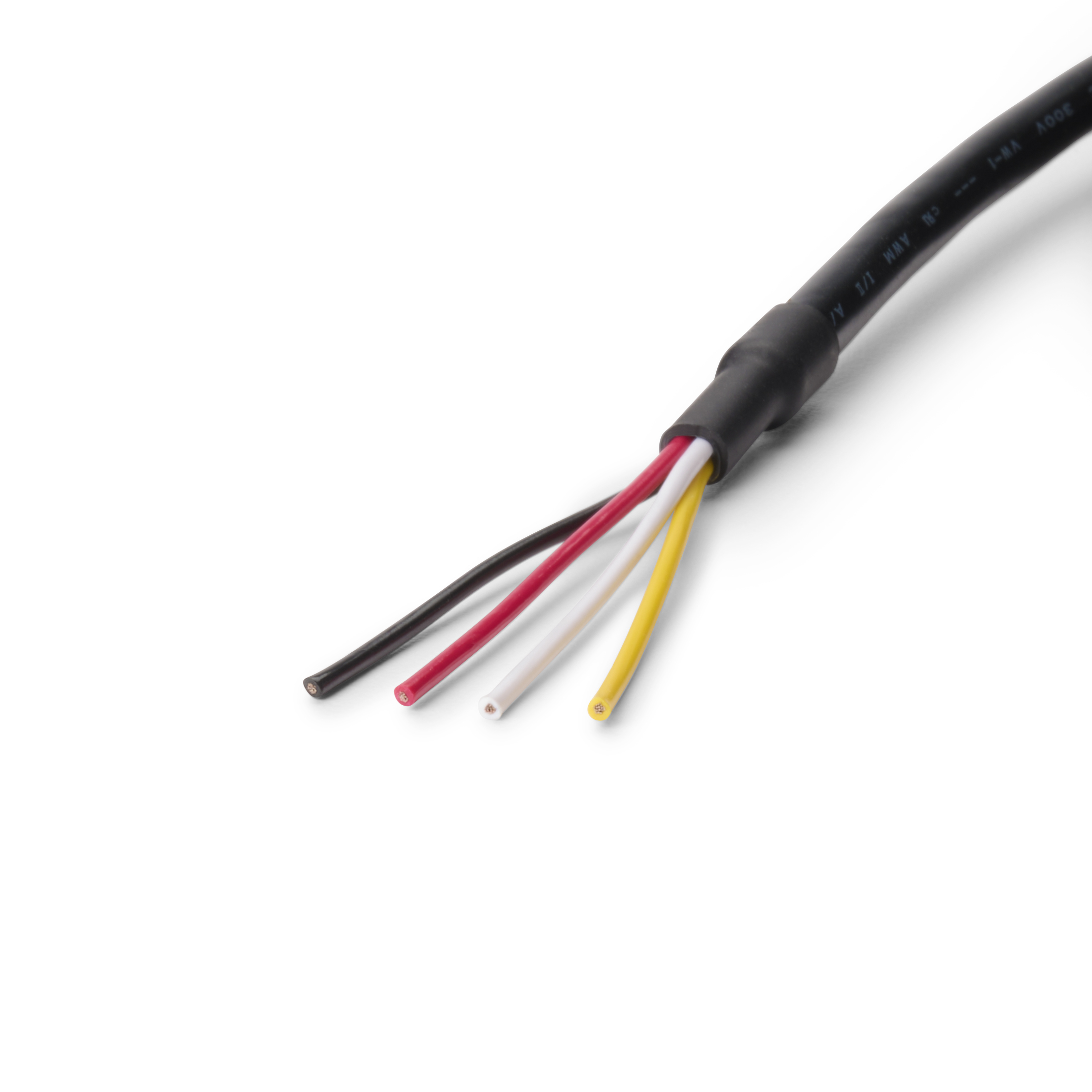

The harness uses flying leads terminating in a 6-pin Chogori connector for connection to the GO Anywhere Plus.
Flexible Power Connection
The harness connects to the equipment’s battery leads, an appropriate ignition signal such as the alternator’s field wire, and the equipment chassis. This makes it suitable for specialty applications where a standard power connection may not be appropriate.
Installation
Proper installation is important for safe and reliable operation. The external power harness must be connected to an appropriately fused circuit to help prevent overcurrent conditions and potential damage to the equipment’s electrical system.
For installation, ensure the harness and connected cables remain within the specified maximum cable length of 1.7 meters / 5.6 feet.
External Power Harness Support Document can be found here. Please contact us if you have any questions.
Frequently asked questions
What is the GO Anywhere Plus External Power Harness?
The GO Anywhere Plus External Power Harness (HRN-GA2EXTPWR) connects a GO Anywhere Plus device to compatible industrial, towed, and construction equipment.
What is the HRN-GA2EXTPWR used for?
The external power harness is designed for equipment that uses a negative battery disconnect switch. It connects the GO Anywhere Plus to the equipment’s battery leads, an appropriate ignition signal, and chassis.
What equipment is the external power harness compatible with?
The harness is intended for compatible industrial, towed, and construction equipment that uses a negative battery disconnect switch.
Is the external power harness compatible with the GO Anywhere Plus?
Yes. The HRN-GA2EXTPWR is designed specifically for the Geotab GO Anywhere Plus.
What type of connector does the external power harness use?
The harness uses flying leads connected to a 6-pin Chogori connector.
How long is the GO Anywhere Plus External Power Harness?
The harness is 63 inches (160 cm) long.
What is the maximum length of the connected cables?
The maximum length of connected cables is 5.6 feet (1.7 meters).
Where does the external power harness connect?
The harness connects to the equipment’s battery leads, an appropriate ignition signal such as the alternator’s field wire, and the equipment chassis.
What is a negative battery disconnect switch?
A negative battery disconnect switch disconnects the negative side of an equipment battery from the electrical system. The HRN-GA2EXTPWR is designed for the minority of industrial, towed, and construction equipment that use this type of disconnect.
Does the external power harness require professional installation?
Professional installation is recommended to ensure the harness is connected correctly and safely to the equipment’s electrical system.
Does the external power harness need a fuse?
The harness should be connected to an appropriately fused circuit. Proper installation helps protect the equipment’s electrical system from overcurrent conditions.
